压测connections 最大只有2048

yifenbushe 2022-03-22

使用workerman压测脚本测试gateway，只有2048个connections，这就是极限了吗？已经按照要求安装扩展和优化内核，环境是centos8/php8

 1422  4 1

4个回答

liziyu 2022-03-22

mark

暂无评论

walkor 2022-03-22

打赏

贴下压测脚本

yifenbushe 2022-03-22

[root@VM-0-16-centos GatewayWorker]# cat vendor/test.php
<?php
require __DIR__ . '/workerman/workerman/Autoloader.php';
use Workerman\Worker;
use Workerman\Lib\Timer;
use Workerman\Connection\AsyncTcpConnection;

$worker = new Worker();
$worker->onWorkerStart = 'connect';
function connect()
{
static $count = 0;
// 2000个链接
if ($count++ >= 2000) return;
// 建立异步链接
$con = new AsyncTcpConnection('ws://127.0.0.1:8282');
$con->onConnect = function($con)
{
// 递归调用connect
connect();
};
$con->onMessage = function($con, $msg)
{
echo "recv $msg\n";
};
$con->onClose = function($con)
{
echo "con close\n";
};
// 当前链接每10秒发个心跳包
Timer::add(10, function()use($con)
{
$con->send("ping");
});
$con->connect();
echo $count, " connections complete\n";

}
Worker::runAll();

?>
[root@VM-0-16-centos GatewayWorker]#
walkor 2022-03-22
// 2000个链接 if ($count++ >= 2000) return;

你贴的压测脚本里限制了，最多发出2000连接。
yifenbushe 2022-03-22

多谢walkor老师，这么晚了还没休息回答问题，赞一个！！！
现在数量上来，但是connections一直在1.5万和3千左右跳动变化，这个正常吗
yifenbushe 2022-03-22

补充下资源占用情况
top - 23:50:39 up 6:28, 3 users, load average: 3.24, 2.22, 1.05
Tasks: 130 total, 4 running, 126 sleeping, 0 stopped, 0 zombie
%Cpu0 : 28.2 us, 19.9 sy, 0.0 ni, 45.5 id, 0.3 wa, 0.7 hi, 5.3 si, 0.0 st
%Cpu1 : 24.8 us, 65.4 sy, 0.0 ni, 4.4 id, 0.0 wa, 1.0 hi, 4.4 si, 0.0 st
MiB Mem : 3736.8 total, 1149.5 free, 1010.3 used, 1577.0 buff/cache
MiB Swap: 0.0 total, 0.0 free, 0.0 used. 2444.0 avail Mem

PID USER PR NI VIRT RES SHR S %CPU %MEM TIME+ COMMAND
76296 root 20 0 423056 140392 5144 R 83.7 3.7 0:03.15 php
74723 root 20 0 318372 36112 5368 R 8.6 0.9 0:32.51 php
74722 root 20 0 316156 33856 5368 S 8.3 0.9 0:31.50 php
74724 root 20 0 316156 33860 5368 R 8.3 0.9 0:30.81 php
74725 root 20 0 316156 33856 5368 S 8.0 0.9 0:31.09 php
74718 root 20 0 296804 14360 4984 S 4.3 0.4 0:14.81 php
74719 root 20 0 296804 14360 4984 S 4.3 0.4 0:14.86 php
74720 root 20 0 296804 14360 4984 S 4.3 0.4 0:14.75 php
74721 root 20 0 296804 14360 4984 S 4.0 0.4 0:14.73 php
yifenbushe 2022-03-22

还有优化空间吗
walkor 2022-03-23

配置好的话gatewayWorker单机支持10万连接很轻松。
但是压测脚本最多能发出2万左右的连接，因为压测脚本发起连接会消耗本地端口，默认本机端口就大概2万可用。

walkor 2022-03-23

打赏

业务逻辑

class Events
{
    public static function onConnect($client_id)
    {
        Gateway::sendToClient($client_id, "Hello $client_id\r\n");
    }
}

压测脚本

<?php
require __DIR__ . '/vendor/autoload.php';
use Workerman\Worker;
use Workerman\Lib\Timer;
use Workerman\Connection\AsyncTcpConnection;

$worker = new Worker();
$worker->onWorkerStart = 'connect';
function connect()
{
    static $count = 0;
    // 20000个链接
    if ($count++ >= 20000) return;
    // 建立异步链接
    $con = new AsyncTcpConnection('ws://127.0.0.1:5555');
    $con->onConnect = function($con)
    {
        // 递归调用connect
        connect();
    };
    $con->onMessage = function($con, $msg)
    {
        //echo "recv $msg\n";
    };
    $con->onClose = function($con)
    {
        echo "con close\n";
    };
    // 当前链接每10秒发个心跳包
    Timer::add(10, function()use($con)
    {
        $con->send("ping");
    });
    $con->connect();

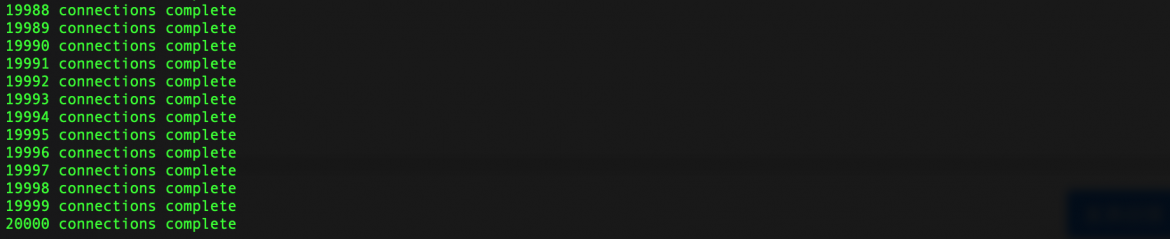

    echo $count, " connections complete\n";

}
Worker::runAll();

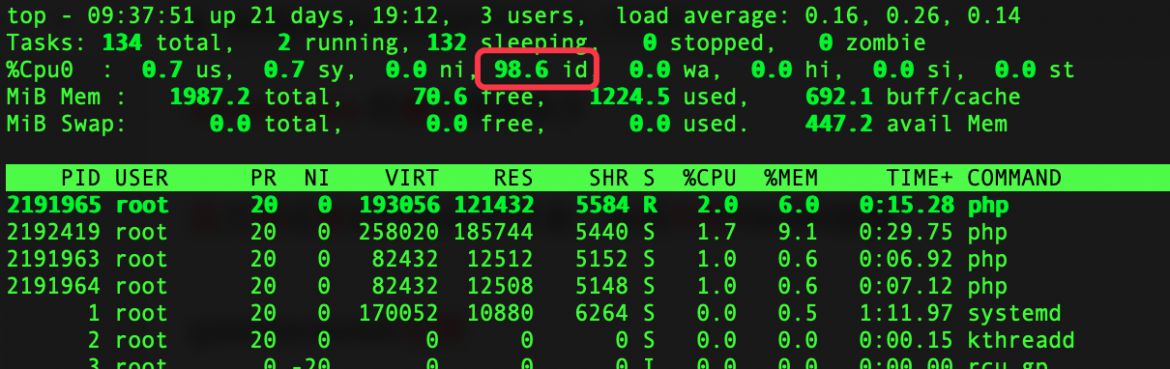

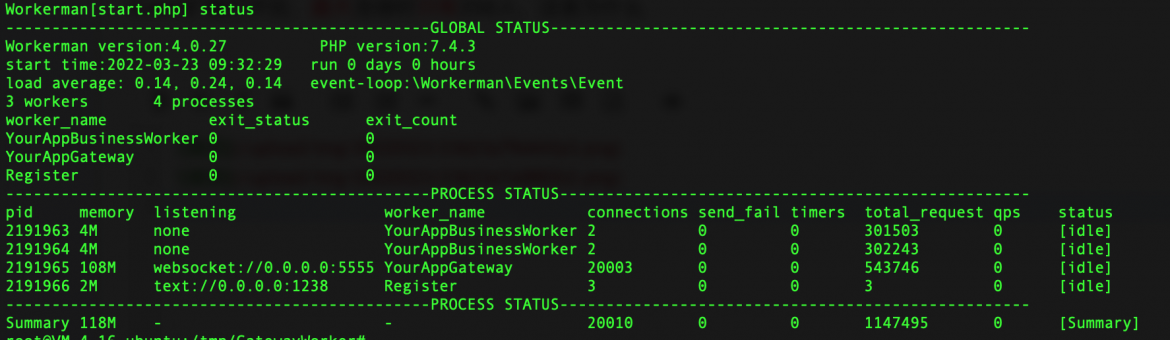

我这1核2G轻服务器127.0.0.1压测轻松2万连接，维持这2万连接cpu占用2%左右，稳定无波动。

yifenbushe 2022-03-23

有做其他优化吗？Event.php按照您这么写完，还是原来那个样，connections再1万上下浮动特别大，感觉不稳定
walkor 2022-03-23

没做其它优化
yifenbushe 2022-03-23

能说下您服务系统及PHP版本吗？不行我重装下

walkor 2022-03-23

PHP 7.4.3 (cli) (built: Mar  2 2022 15:36:52) ( NTS )
Copyright (c) The PHP Group
Zend Engine v3.4.0, Copyright (c) Zend Technologies
    with Zend OPcache v7.4.3, Copyright (c), by Zend Technologies

Ubuntu Server 20.04 LTS 64bit
CPU: 1核 内存: 2GB

walkor 2022-03-24

打赏

压测有问题继续在这里回复追加提问，不要新开帖子。
https://www.workerman.net/doc/workerman/debug/busy-process.html 按照手册strace下busy的进程，贴下系统调用。

yifenbushe 2022-03-24

按照老师的配置，把event root@gateway:/var/www/ht Workerman[start.php] status
------------------------ Workerman version:4.0.27 start time:2022-03-24 06:17:29 load average: 1.71, 1.4, 0.76 3 workers 9 processes
worker_name YourAppBusinessWorker 0 YourAppGateway 0 Register 0 ------------------------ pid memory listening 4122 4M none 4123 4M none 4124 4M none 4125 4M none 4126 52M 4127 60M 4128 32M 4129 30M 4130 2M text://0.0.0.0:1238 ------------------------ Summary 192M - root@gateway:/var/www/ht Workerman[start.php] status
------------------------ Workerman version:4.0.27 start time:2022-03-24 06:17:29 load average: 1.71, 1.4, 0.76 3 workers 9 processes
worker_name YourAppBusinessWorker 0 YourAppGateway 0 Register 0 ------------------------ pid memory listening 4122 4M none 4123 4M none 4124 4M none 4125 4M none 4126 52M 4127 60M 4128 32M 4129 30M 4130 2M text://0.0.0.0:1238 ------------------------ Summary 192M - 所有代码注释掉，只留onConnect()代码，个人PC开启的虚拟机，2核2g内存，稳定跑出2.8万 connections。算是一个阶段胜利吧，虽然是理想状态，多谢老师指导！！！！
ml/GatewayWorker# php start.php status
----------------------GLOBAL STATUS----------------------------------------------------
PHP version:7.4.3
run 0 days 0 hours
event-loop:\Workerman\Events\Event
exit_status exit_count
0
0
0
----------------------PROCESS STATUS---------------------------------------------------
worker_name connections send_fail timers total_request qps status
YourAppBusinessWorker 5 0 0 171279 0 [idle]
YourAppBusinessWorker 5 0 0 168504 0 [idle]
YourAppBusinessWorker 5 0 0 172958 0 [idle]
YourAppBusinessWorker 5 0 0 174293 0 [idle]
websocket://0.0.0.0:8282 YourAppGateway 8296 0 0 187990 0 [idle]
websocket://0.0.0.0:8282 YourAppGateway 9822 0 0 237910 0 [idle]
websocket://0.0.0.0:8282 YourAppGateway 5219 0 0 99483 0 [idle]
websocket://0.0.0.0:8282 YourAppGateway 4915 0 0 89428 0 [idle]
Register 8 0 0 8 0 [idle]
----------------------PROCESS STATUS---------------------------------------------------
- 28280 0 0 1301853 0 [Summary]
ml/GatewayWorker# php start.php status
----------------------GLOBAL STATUS----------------------------------------------------
PHP version:7.4.3
run 0 days 0 hours
event-loop:\Workerman\Events\Event
exit_status exit_count
0
0
0
----------------------PROCESS STATUS---------------------------------------------------
worker_name connections send_fail timers total_request qps status
YourAppBusinessWorker 5 0 0 172405 0 [idle]
YourAppBusinessWorker 5 0 0 169656 0 [idle]
YourAppBusinessWorker 5 0 0 174138 0 [idle]
YourAppBusinessWorker 5 0 0 175488 0 [idle]
websocket://0.0.0.0:8282 YourAppGateway 8296 0 0 189590 0 [idle]
websocket://0.0.0.0:8282 YourAppGateway 9822 0 0 239152 0 [idle]
websocket://0.0.0.0:8282 YourAppGateway 5219 0 0 100391 0 [idle]
websocket://0.0.0.0:8282 YourAppGateway 4915 0 0 90327 0 [idle]
Register 8 0 0 8 0 [idle]
----------------------PROCESS STATUS---------------------------------------------------
- 28280 0 0 1311155 0 [Summary]
